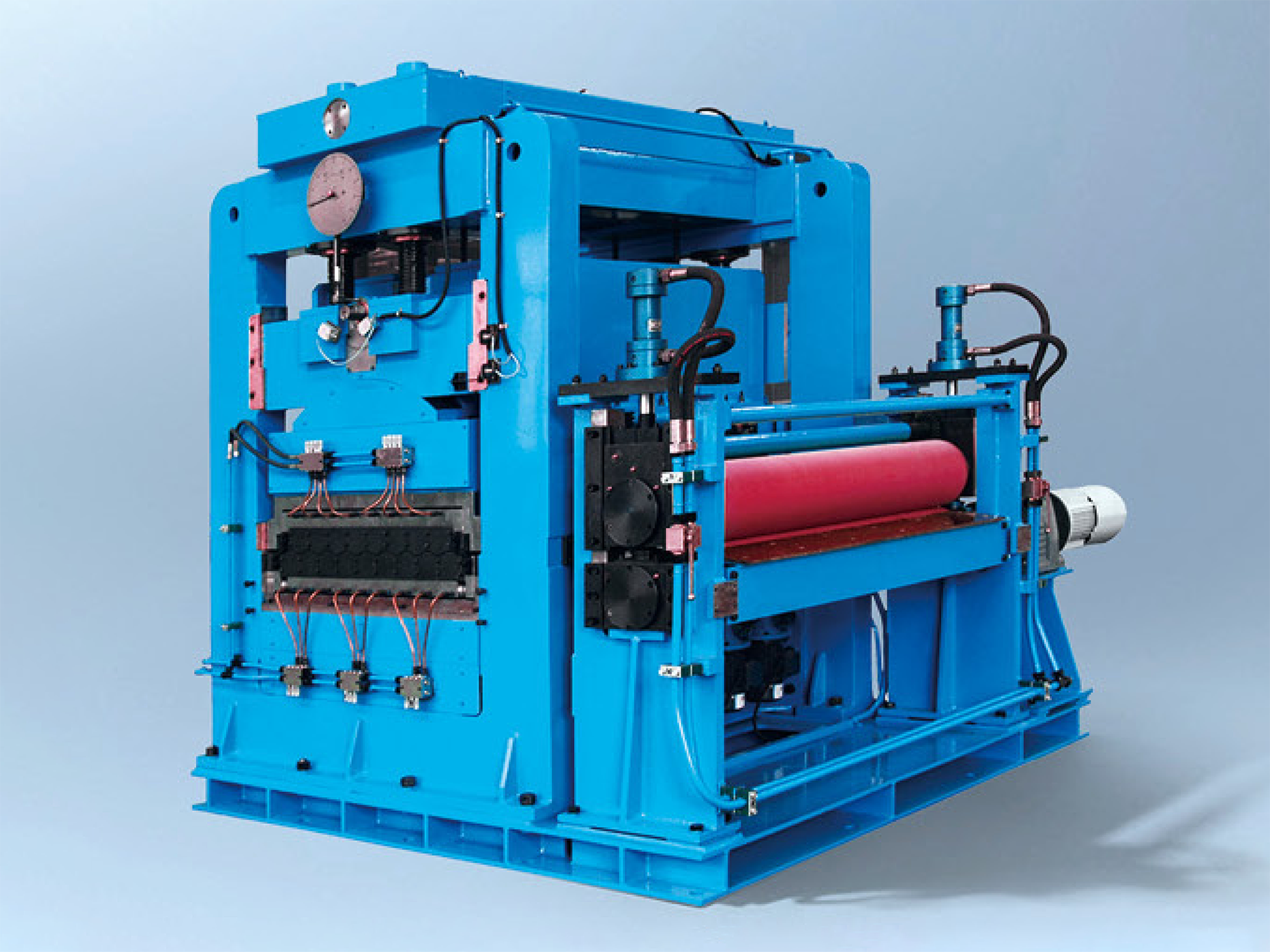

Jiade Custom Multi-Roller Straightening Solutions (5 to 23 Rolls)

We provide bespoke design and manufacturing services for multi-roller straightening machines, engineered to correct residual stress and geometric deviations in metal plates. Our product lineup covers a full range from 5-roll to 23-roll configurations, designed to handle varying degrees of deformation across different alloys.

Key Performance Indicators:

· Flatness Accuracy: Achieves flatness levels up to 5 I-Units (depending on configuration and material properties).

· Material Range: Capable of processing materials with tensile strengths ranging from mild steel to high-strength alloys exceeding 1200 MPa.

· Thickness Capacity: Designed for thin plates ranging from gauges 0.02-0.8mm, depending on the specific roller setup.

Machine Characteristics:

· Structural Rigidity: Heavy-duty welded steel frames undergo stress-relief annealing to prevent distortion during operation, ensuring long-term precision.

· Roll System: Work Rolls are manufactured from high-grade alloy steel (e.g., 9Cr2Mo), induction hardened, and ground to mirror finishes. Backup roll clusters provide maximum support to prevent roll deflection.

· Drive System: Individual or group drives via high-torque gearboxes ensure synchronized movement and high traction force.

· Control System: Siemens/Allen-Bradley PLC integration with HMI touch screens for real-time monitoring of rolling force, position, and speed.

Target Materials:

Whether you are looking for a slitting or cut-to-length line, The Jiade®, combining the expertise of Xiangyang Jiade Machinery Co., Ltd., has your solution for lean manufacturing, scrap reduction, and increased efficiency. We have a complete line of entry equipment, world-class leveling machines, hydraulic, mechanical, Side Trimmer and rotary shears, as well as Scale breaker, coil coater solutions that will change your bottom line.

We offer surface critical lines capable of processing bright finish and stainless steel. Experience The Jiade Machinery advantage by joining the hundreds of companies that profit from Jiade Machinery equipment and service.
