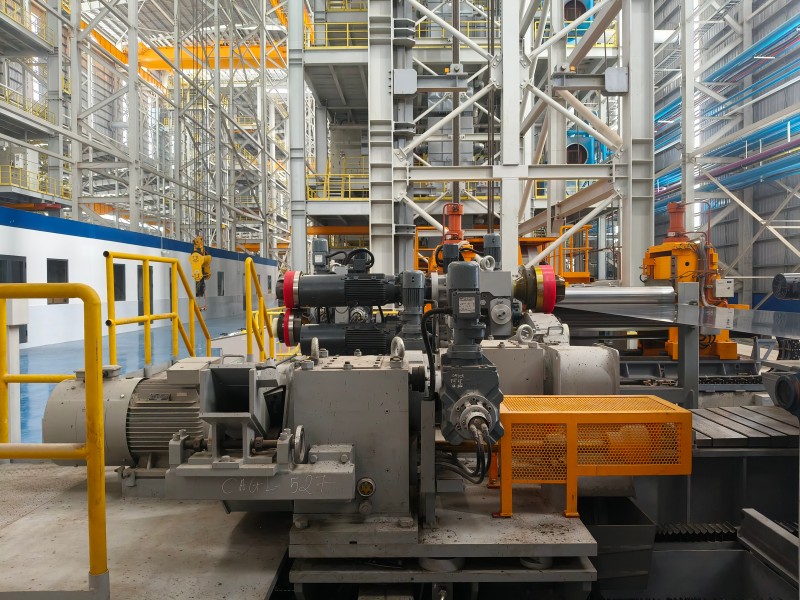

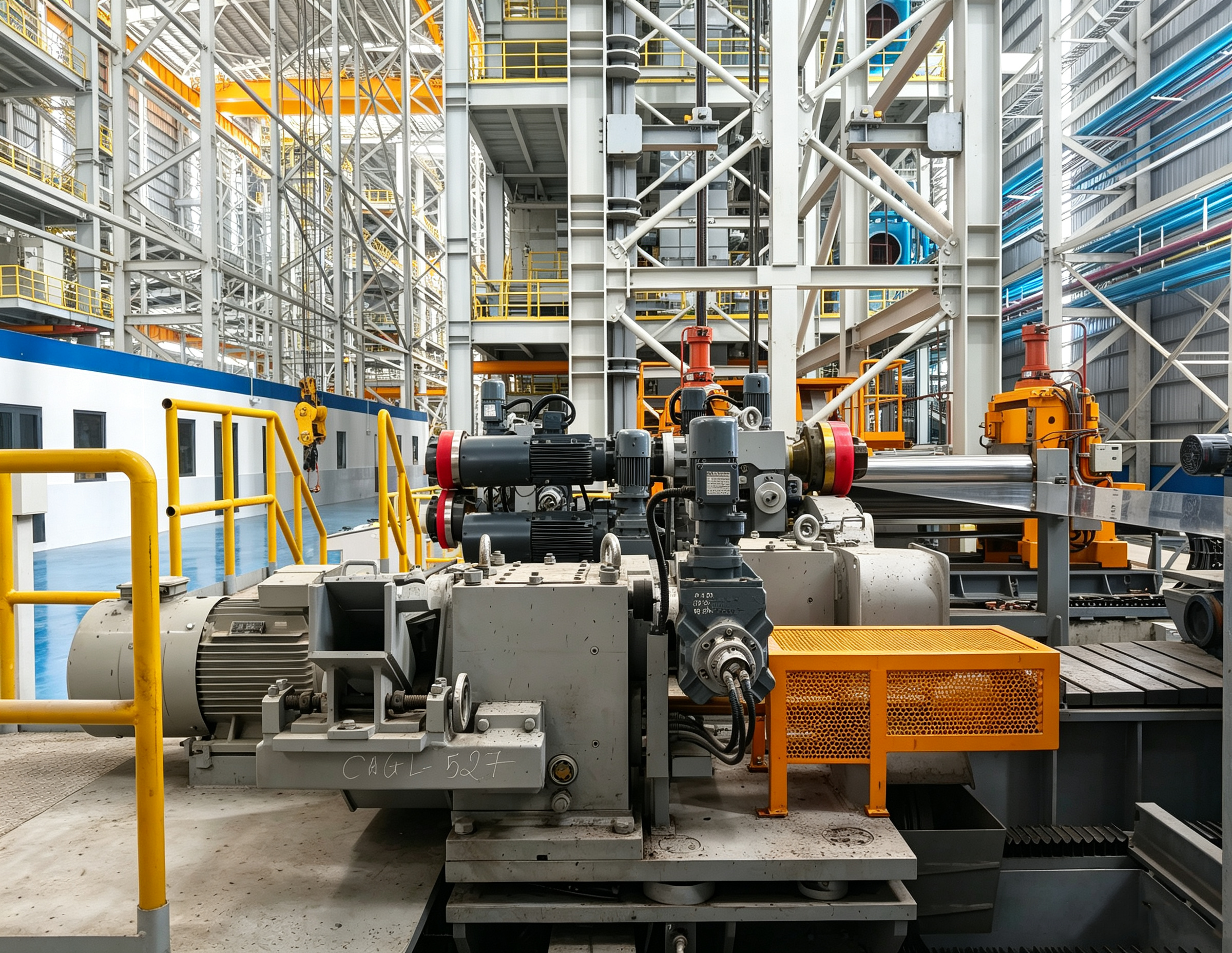

Side Edge Shearing Line

Jiade Edge trimming of the strip brings high added value to the coil by eliminating strip edge defects and giving a precision width tolerance. Available in many processing lines like Pickling Lines, Annealing Lines, Galvanizing Lines, Tinning Lines, Inspection Leveling and Cut-to-Lines.

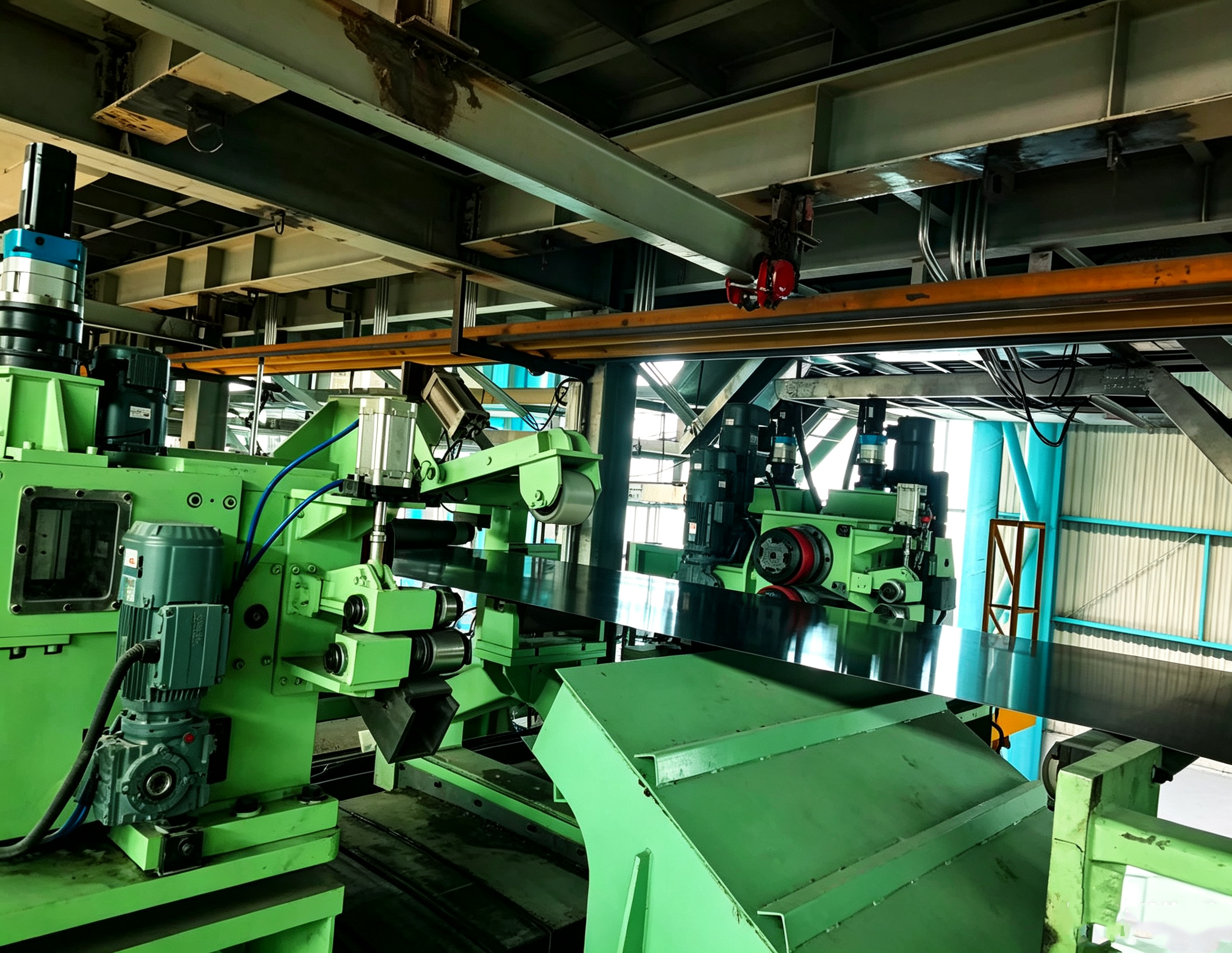

The side trimming section is a key equipment for final product quality.

Jiade side trimming equipment covers full processing line matching solutions, including single-head Side Trimmer, turret dual-head side trimmer for fast online knife change, and matched scrap chopper customized by strip thickness & running speed.

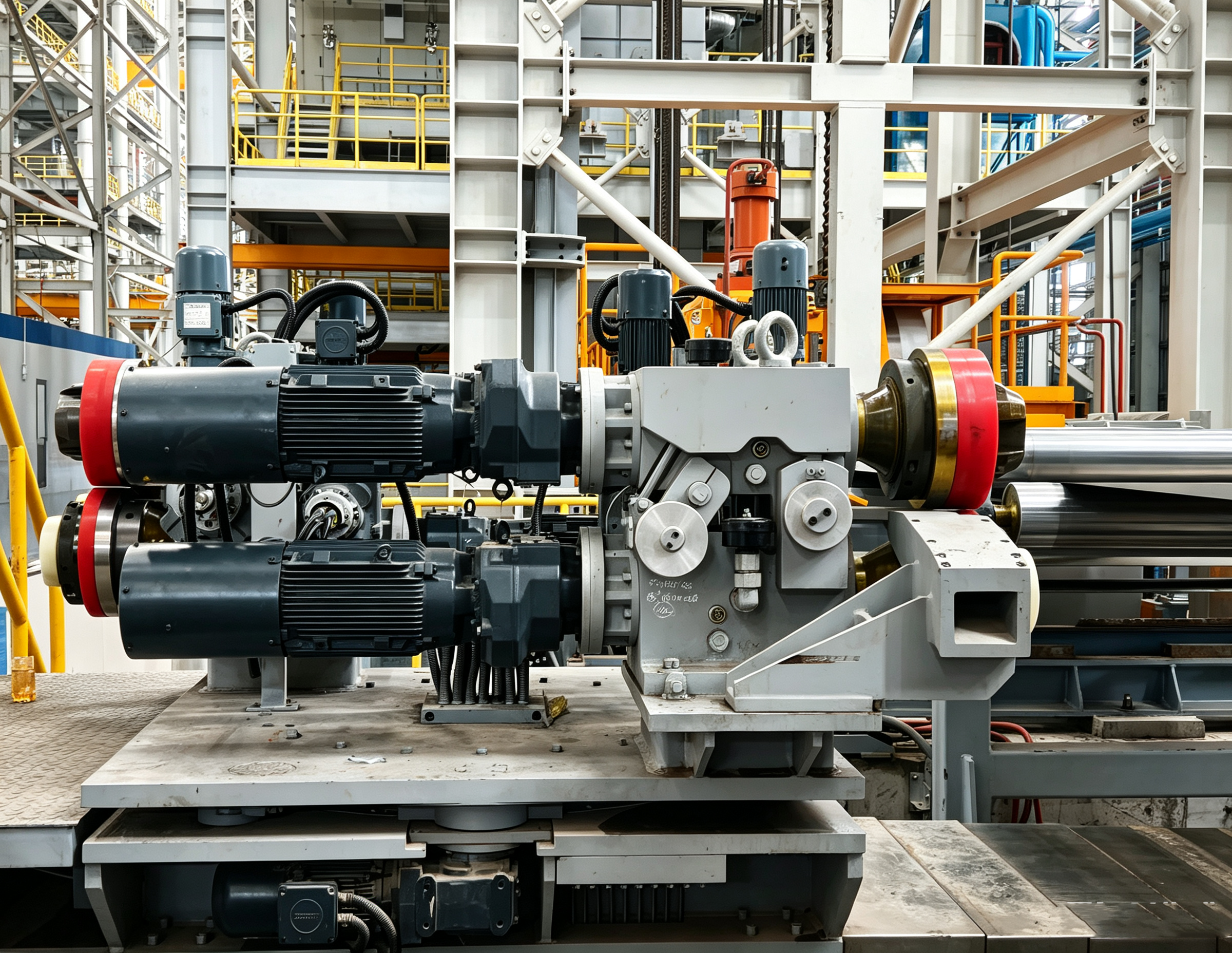

· Single pair of cutting heads

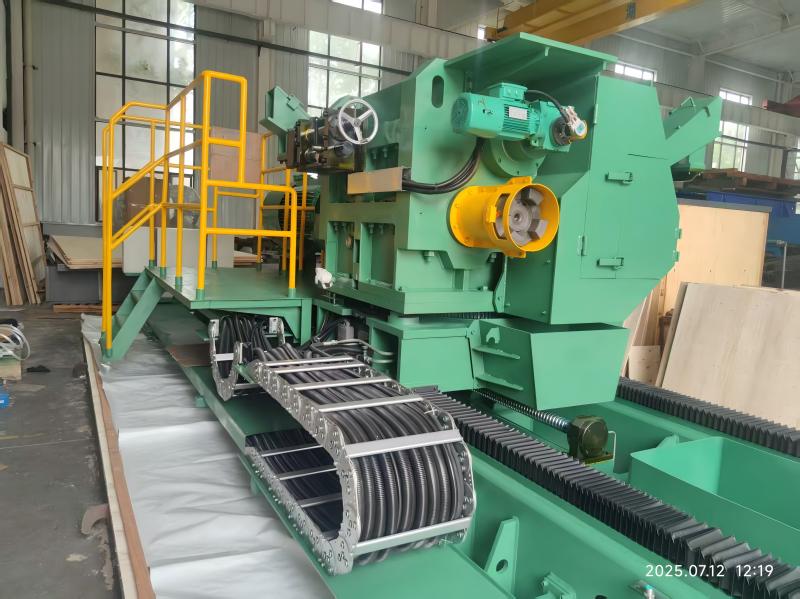

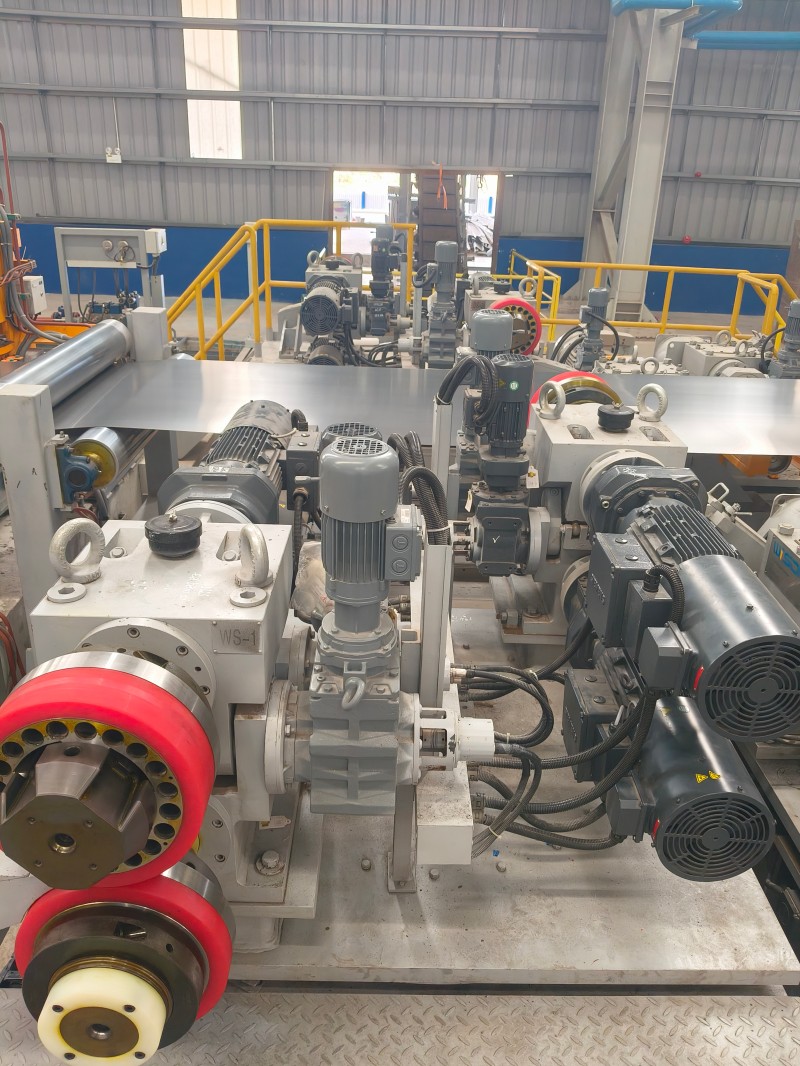

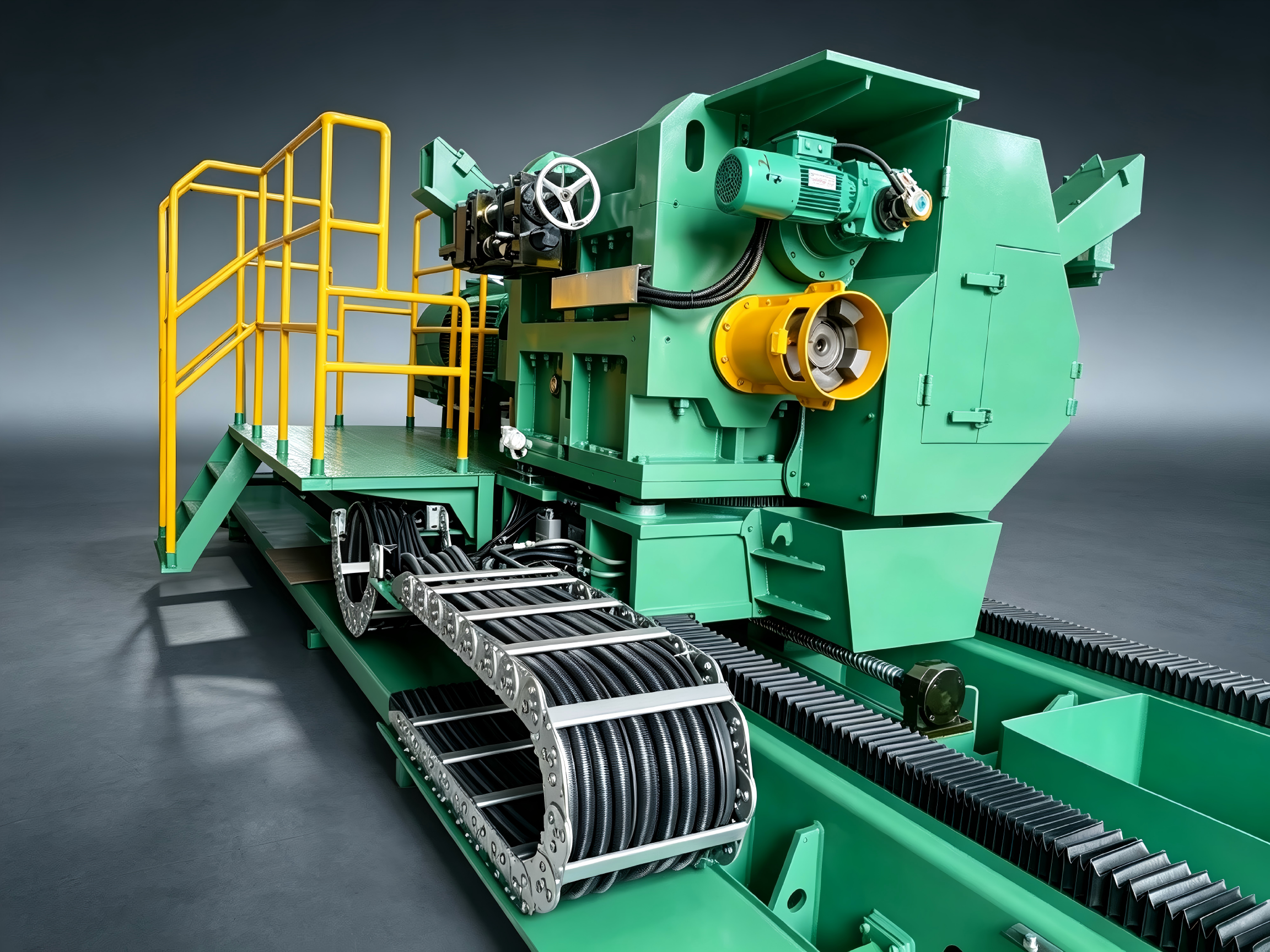

· Turret dual-head design for non-stop blade replacement

· Supporting matched scrap chopper for scrap disposal

Adopting high-precision servo drive and zero-backlash ball screw system, Jiade side trimmer delivers ultra-precise trimming tolerance to meet strict strip width requirements.

This new generation fully-electric side trimmer removes all hydraulic components, avoiding oil leakage and fire risks for easier daily maintenance and better environmental performance. It is equipped with Siemens automatic control system to realize top-tier cutting accuracy.

Application & Technical Parameters

· Applicable Lines: CAL, CGL, CPL, PLTCM, PPPL, Stainless Steel Processing Lines

· Function: Strip edge trimming

· Processing Thickness: 0.15 to 6 mm

· Strip Width: 600 to 2,100 mm

· Max Line Speed: 0 to 700 mpm

· Processable Materials: Carbon Steels, Low Alloyed Steels, HSS, Silicon & Stainless Steel
