Jiade Tension Leveler applied in aluminum coil process

Jiade Aluminum plate tension Levelers (stretch-bending levelers) combine the advantages of continuous Tension Leveling and roller leveling.

They eliminate internal residual stresses in plates through composite plastic deformation via a "tension + bending" mechanism.

· High-Efficiency Elimination of Shape Defects: Completely resolves post-cold-rolling issues such as edge waves, center buckles, quarter buckles, and camber. Achieves flatness control within 3-5 I-Units.

· Improved Material Workability: Eliminate the metal yield plateau and prevent slip line formation, so that the sheet metal deforms more evenly during subsequent deep drawing or shaping, reducing stamping scrap rates.

· Low Operating Costs: Requires only 1/3 to 1/5 of the tension needed for pure stretch leveling to achieve equivalent results, resulting in lower energy consumption and reduced equipment load.

Core Selection Parameters

· Thickness & Roll System Matching:

o For thin aluminum coils (0.1–2 mm), a fine roll pitch and multi-roll systems (15–21 rolls) are required to ensure precision.

o For thick aluminum plates (3–12 mm), large-diameter rolls (φ80–120 mm) and a high-rigidity machine frame are necessary to prevent deformation.

· Anti-Scratch Roll Surface Treatment: For high-gloss, mirror-finish, or anodized aluminum plates, the roll system must feature a finely finished surface roughness (Ra ≤ 0.8 μm) or utilize special anti-scratch designs such as nylon-coated rolls.

· Intelligent Control Systems: Prioritize equipment equipped with high-precision elongation closed-loop control, full digital setting, and recipe management capabilities.

For aluminum coil leveling, Jiade have following leveler can be used

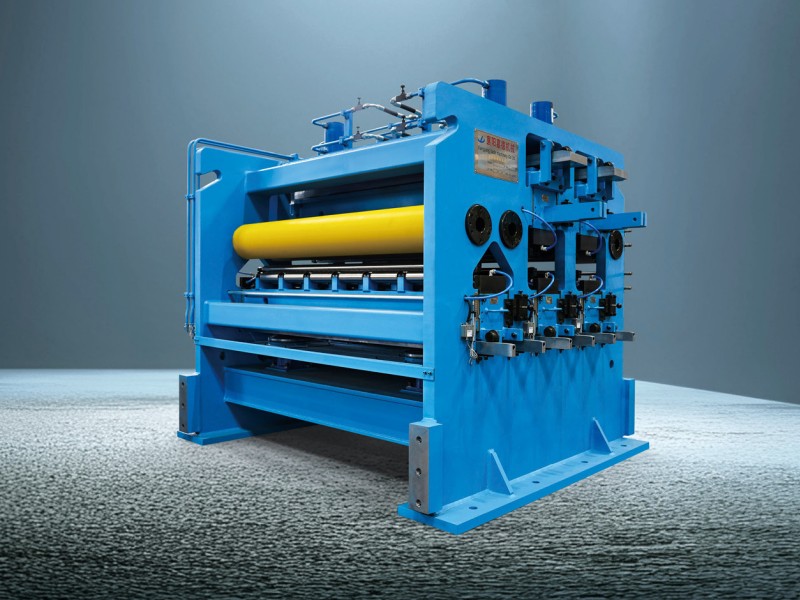

tension leveler for aluminum coil

· Tech Specification

· Strip material: aluminum

· Strip thickness: 0.2～4.0mm

· Strip width: 1250～2500mm

· Strip speed: ≤500m/min

· Incoming material plate shape: ≤30～50I

· Finished strip shape: 3～5I

· Application scope: Aluminum strip bending and leveling

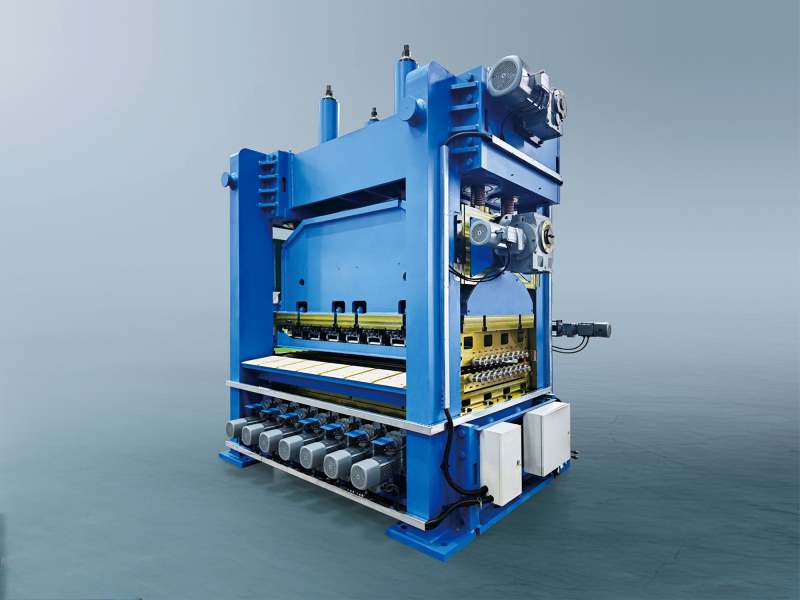

Multi-roller Straightener:

Our company can design and manufacture multi-roller Straightener machines according to user needs. Currently, we have developed straightening machines with 5, 7, 9, 11, 13, 17, 19, and 23 rollers, which are mainly used for straightening plates such as plain carbon steel plates, stainless steel plates, high-strength alloy plates, aluminum and aluminum alloy plates, and titanium plates
