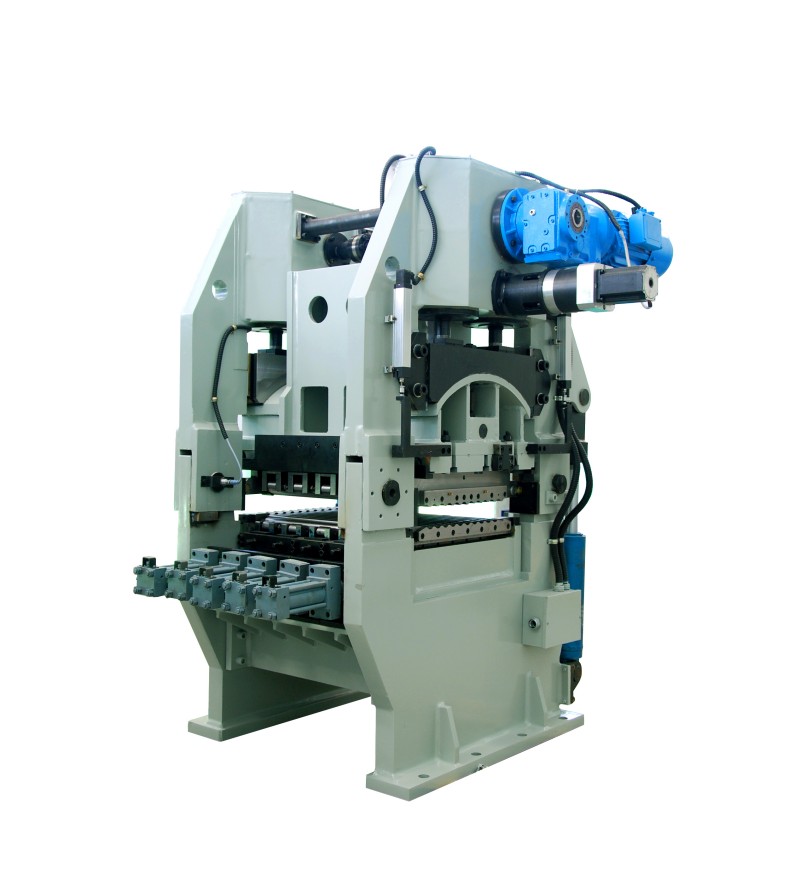

The 0.08–0.8mm high-precision brass strip Tension Leveling machine is a high-precision flatness finishing equipment developed by our company for the production of metal sheets and strips.

It features low cost, good flatness, and a high degree of automation. This machine has obtained a national utility model patent.

The machine adopts a pre-bending leveling and fine leveling process.

Through the combined bending and leveling process, it improves the shape defects of rolled metal strips and evens out the internal residual stress of the strips.

The straightness of the leveled product is less than 5I, approaching the advanced foreign level.

It can be applied to high-precision copper strips and stainless steel strips.

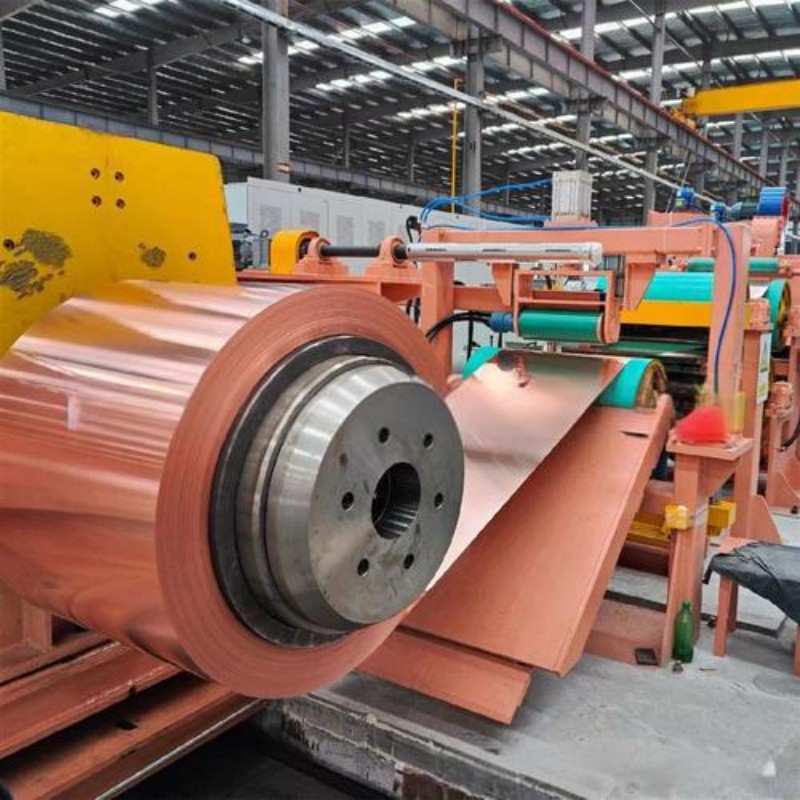

Following is our copper strip project detail info

Project name: five star copper material

2.1 Strip Parameters

Material: Copper and copper alloys

Thickness: 0.15 mm – 1.0 mm Max

Width: 420 mm Min – 630 mm Max

Form: Coiled strip

Incoming Material Properties:

· Tensile Strength: 190 – 950 N/mm²

· Yield Strength: 140 – 800 N/mm²

· Elastic Modulus: 105,000 – 140,000 N/mm²

· Elongation: 2% – 60%

· Incoming Condition: Camber < 0.2 mm/m (< 15 mm/100 m)

Temper / Delivery Condition: M (Soft), 1/2H (Half-hard), H (Hard), EH (Ultra-hard), SH (Spring hard), ESH (Extra spring hard)

2.2 Line Parameters

Line Speed: Subject to thickness-dependent limits

· Max 150 m/min (Material thickness ≤ 0.3 mm)

· Max 100 m/min (0.3 mm < Material thickness < 0.6 mm)

· Max 80 m/min (0.6 mm ≤ Material thickness ≤ 1.0 mm)

Line Direction: Right to left (viewed from operator side)

Threading Speed: 15 m/min

Line Tensions:

· Uncoiler Tension: Max 12,500 N

· Leveller Tension (Stretcher Leveller): Max 80,000 N

· Multi-roll Leveller Tension: Max 75,000 N

· Recoiler Tension: Max 12,500 N

5. Equipment Composition

1. Entry Coil Storage Station — 1 set

2. Entry Mandrel/Sleeve Storage Station — 1 set

3. Entry Coil Car — 1 set

4. Uncoiler — 1 set

5. Paper Take-up Reel (Scrap Paper Winder) — 1 set

6. Entry Guide Roll — 1 set

7. Entry Side Trimmer / Entry Shear — 1 set

8. Threading Device / Pinch Roll Unit — 1 set

9. Entry Bridle — 1 set

10. Stretcher Leveller — 1 set

11. Center Bridle (Intermediate Bridle) — 1 set

12. Multi-roll Leveller — 1 set

13. Exit Bridle (with Inspection Table) — 1 set

14. Exit Guide Roll — 1 set

15. Recoiler (with Paper Feeder & EPC System) — 1 set

16. Exit Coil Car — 1 set

17. Exit Mandrel/Sleeve Storage Station — 1 set

18. Exit Coil Storage Station — 1 set

19. Hydraulic System — 1 set

20. Pneumatic System — 1 set

21. Electrical Control System — 1 set

In this project Jiade machinery designed is use one set of Tension Leveler + one set of 23 roll type tension Leveler combined system to achieve the copper strip process.
