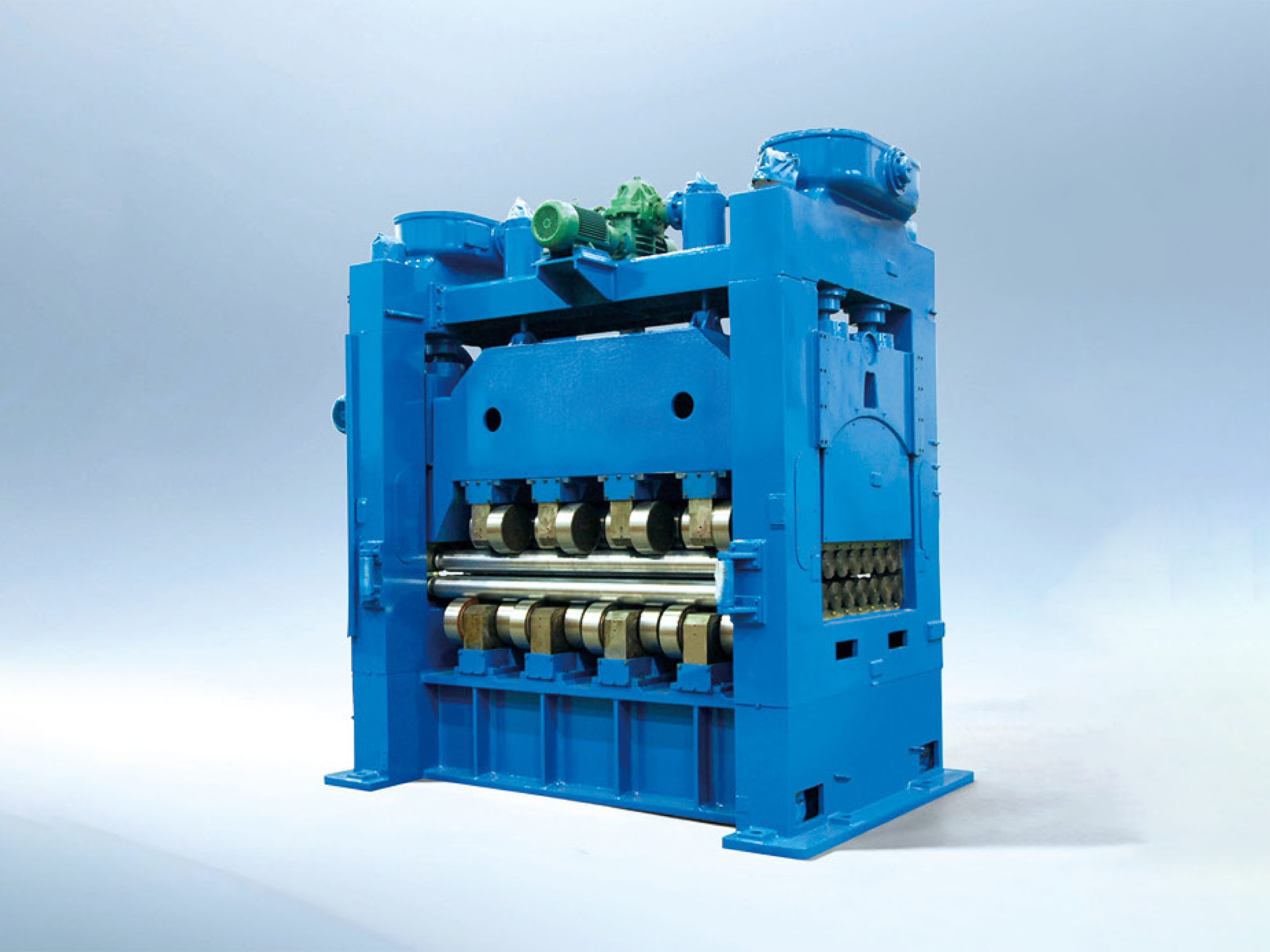

Jiade Custom Multi-Roller Straightening Solutions (5 to 23 Rolls)

We provide bespoke design and manufacturing services for multi-roller straightening machines, engineered to correct residual stress and geometric deviations in metal plates. Our product lineup covers a full range from 5-roll to 23-roll configurations, designed to handle varying degrees of deformation across different alloys.

Key Performance Indicators:

· Flatness Accuracy: Achieves flatness levels up to 5 I-Units (depending on configuration and material properties).

· Material Range: Capable of processing materials with tensile strengths ranging from mild steel to high-strength alloys exceeding 1200 MPa.

· Thickness Capacity: Designed for thin plates ranging from gauges 0.02-0.8mm, depending on the specific roller setup.

Machine Characteristics:

· Structural Rigidity: Heavy-duty welded steel frames undergo stress-relief annealing to prevent distortion during operation, ensuring long-term precision.

· Roll System: Work Rolls are manufactured from high-grade alloy steel (e.g., 9Cr2Mo), induction hardened, and ground to mirror finishes. Backup roll clusters provide maximum support to prevent roll deflection.

· Drive System: Individual or group drives via high-torque gearboxes ensure synchronized movement and high traction force.

· Control System: Siemens/Allen-Bradley PLC integration with HMI touch screens for real-time monitoring of rolling force, position, and speed.

Target Materials:
