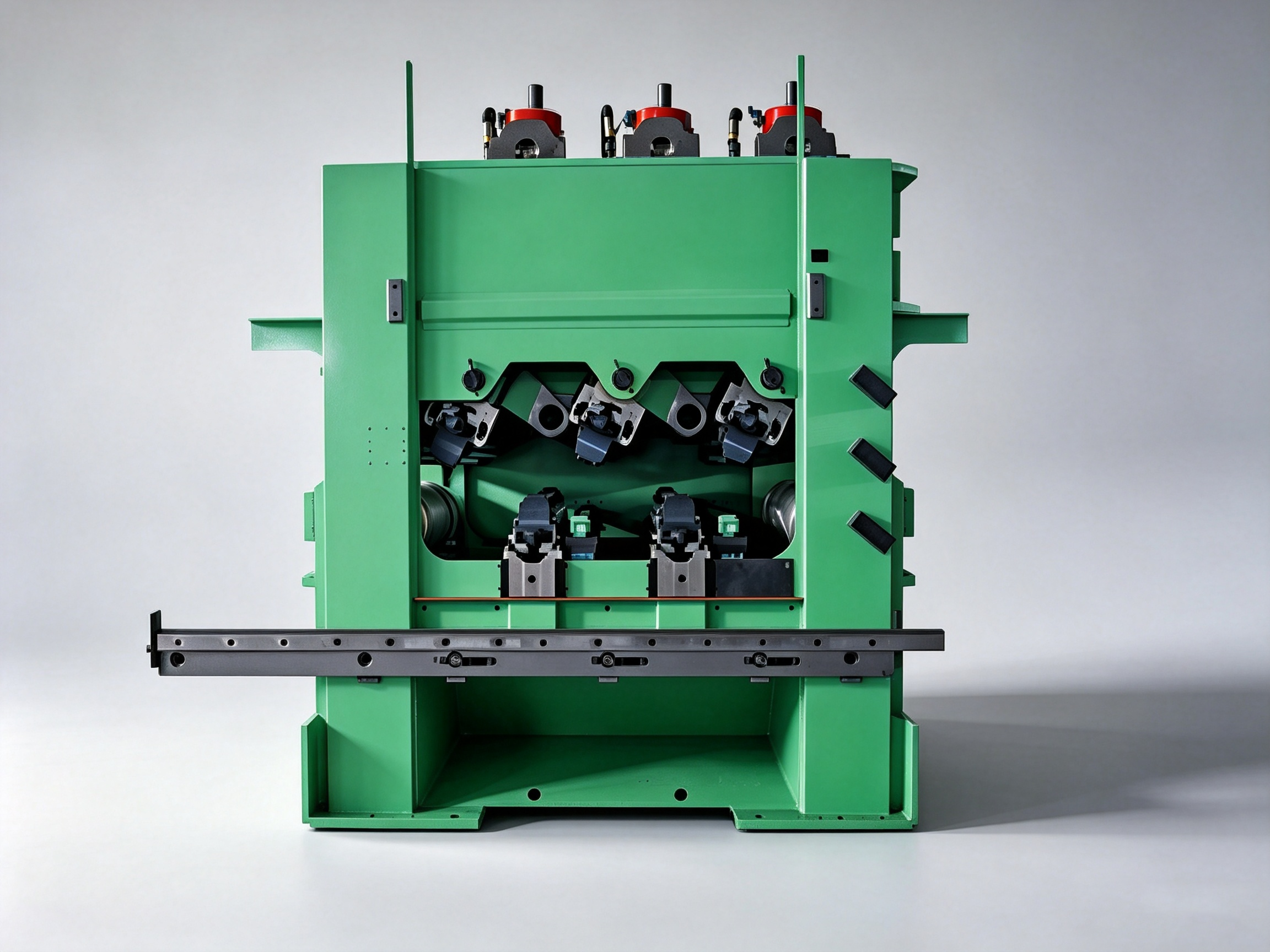

Product Introduction: Jiade Two-Bending & One-Leveling Scale breaker

Core Process

The Jiade Two-Bending & One-Leveling Scale Breaker is a high-efficiency finishing machine specifically engineered for the surface pretreatment of hot-rolled strips. Its name derives from the unique "Two-Bending & One-Leveling" composite process. Under controlled tension, the strip passes through two sets of small-diameter bending rolls, inducing severe reverse bending that causes the hard surface oxide scale to fatigue, crack, and flake off. Immediately following this, the strip enters a large-diameter leveling roll to rectify any micro-waves generated by the bending, restoring optimal flatness.

Key Technical Advantages

.Superior Descaling Efficiency: The dual-bending design increases the number of bending strain cycles applied to the oxide layer. Compared to single-bend systems, it more thoroughly fractures dense, high-adhesion scales, significantly accelerating pickling speed and enhancing surface cleanliness.

.Optimized Strip Shape: The unique "One-Leveling" function corrects waviness, buckles, and camber induced during the bending process. This prevents shape deterioration often seen in pure descaling operations, achieving a perfect balance between scale removal and flatness control.

.Low Operating Costs: The optimized roll configuration reduces the required tensile tension (to only 1/3~1/2 of that needed for pure stretching), minimizing the risk of strip breakage and lowering main motor energy consumption, while also reducing roll wear.

.Robust & Reliable Structure: Built with a heavy-duty welded frame and high-precision bearing blocks, the machine offers exceptional rigidity to withstand impact loads and high-frequency bending stresses from hot-rolled materials, ensuring long-term operational stability.

Applications

This equipment serves as a core unit in Pickling Lines (PL) and Continuous Pickling Lines (CPL) for hot-rolled stainless steel, Advanced High-Strength Steels (AHSS), silicon steel, and special alloys. It not only significantly boosts pickling efficiency and reduces acid consumption but also provides superior shape quality for subsequent cold rolling processes, making it a critical asset for enhancing overall production line profitability.
