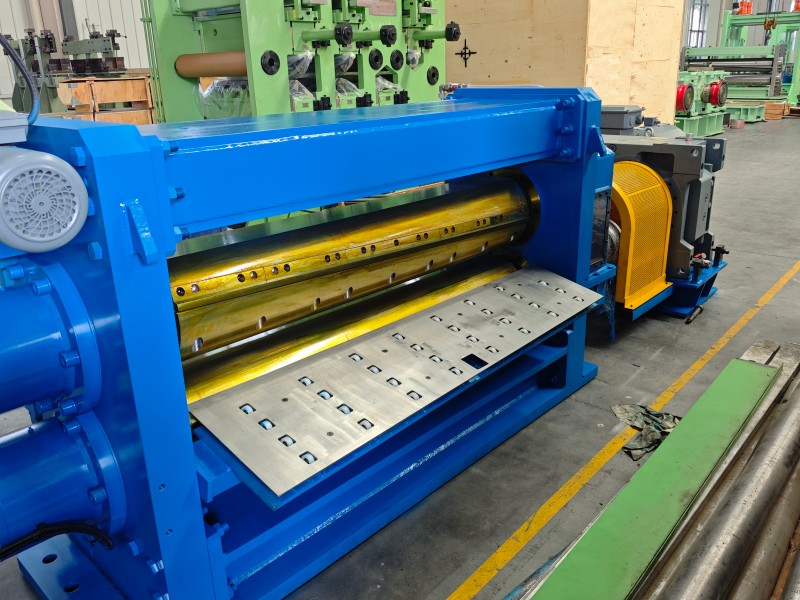

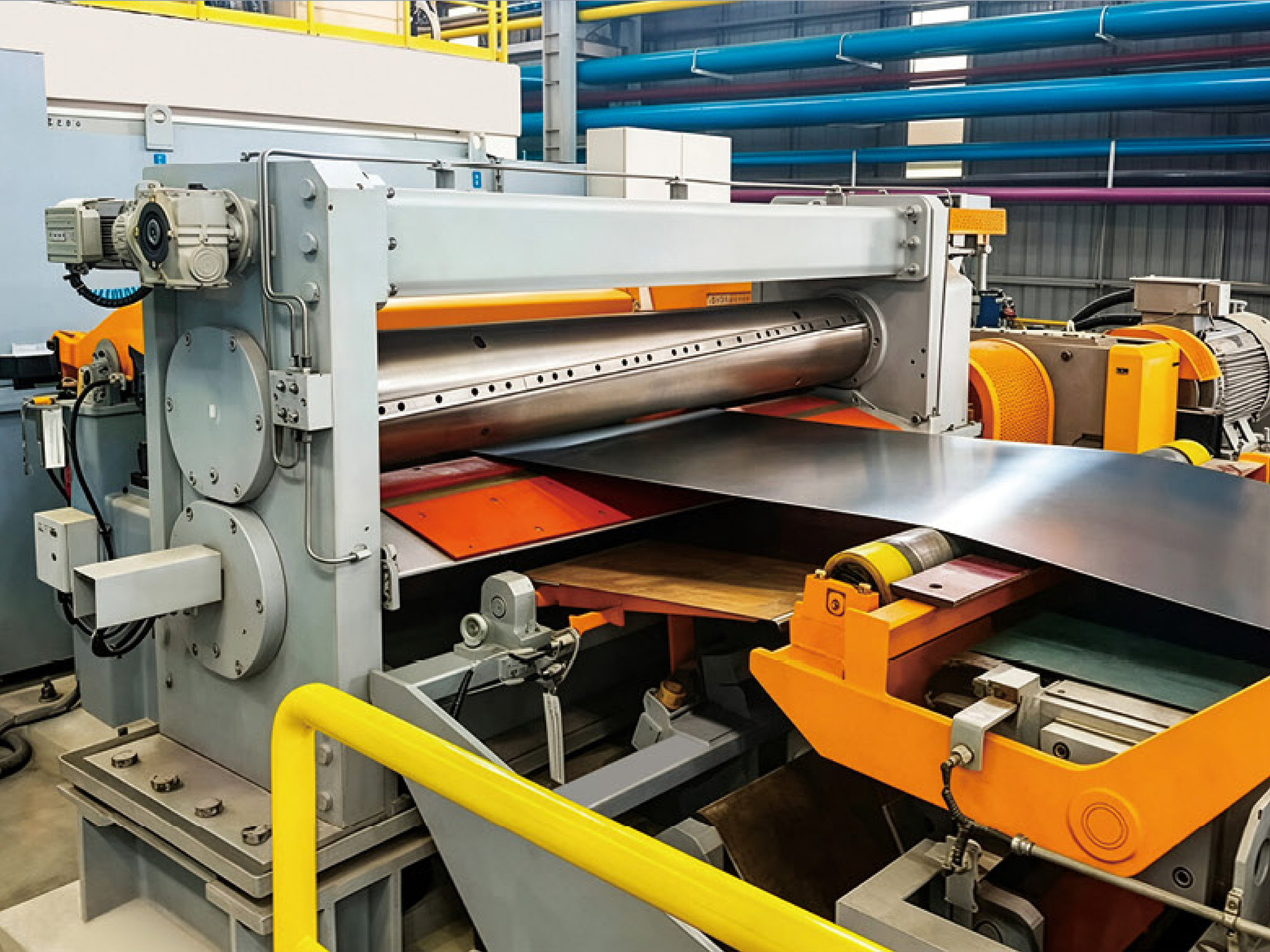

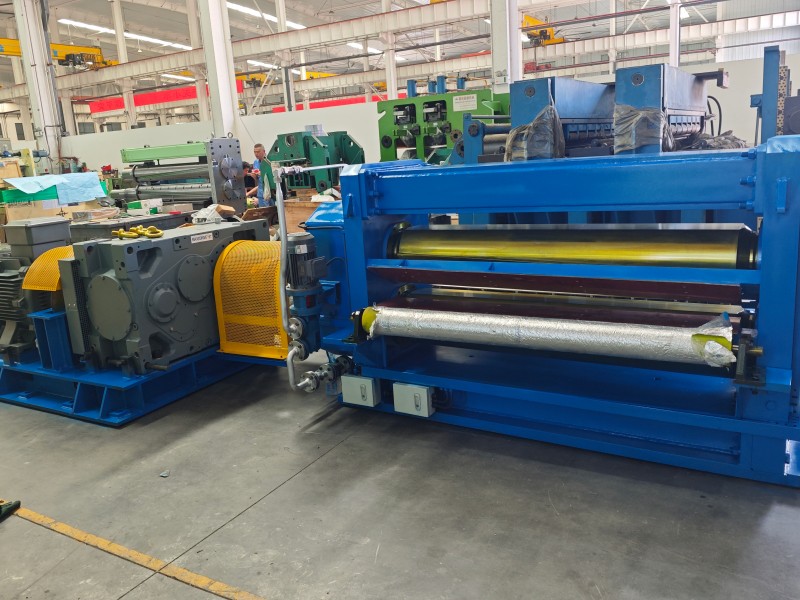

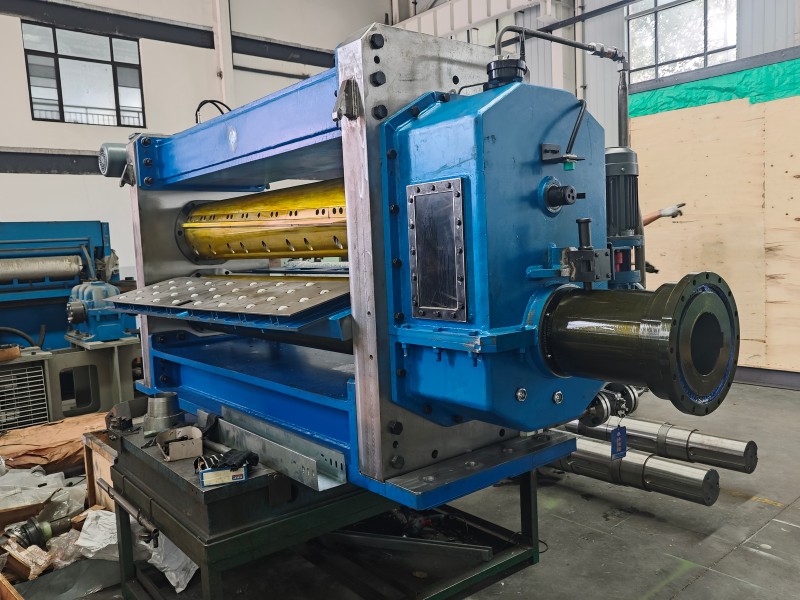

Rotary Drum Fly Shear

The rotary drum Flying Shear is applied to the outlet of various continuous cold strip rolling mills to achieve dynamic coil separation. During the shearing process, the upper and lower drums of the flying shear perform circular motion, and the shear blades installed inside the drums rotate with the drums to perform shearing motion, cutting off the strip steel. The flying shear can automatically or manually adjust the side clearance of the shear blades through an adjustment device to accommodate the shearing needs of different specifications of strip steel.

Tech Specification

Sheet thickness: 0.3～4.0mm

Strip width: 800～1650mm

Shearing speed: ≤90m/min

Tensile strength: Max. 1180 MPa

Roller diameter: φ360mm

Axial movement of the drum: ≤±0.01mm

Parallelism of the upper and lower blade surfaces after blade installation: ≤±0.03mm

Application scope:

Used for strip steel Cut to length line, scrap cutting, and sampling
