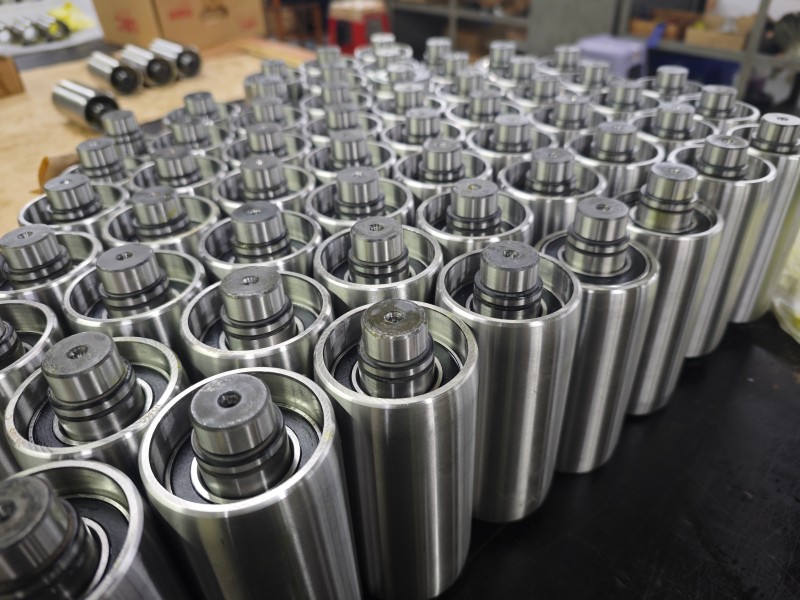

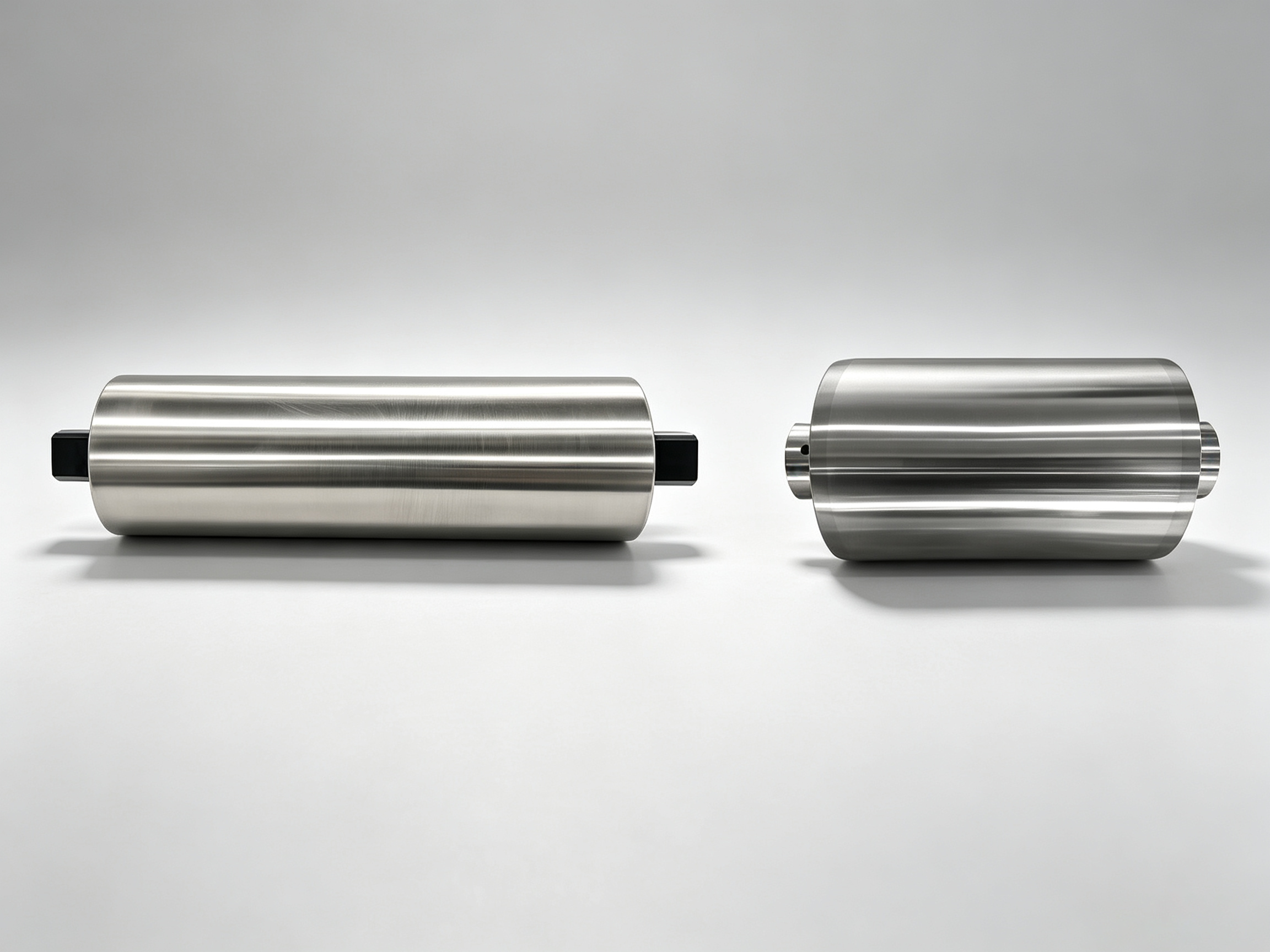

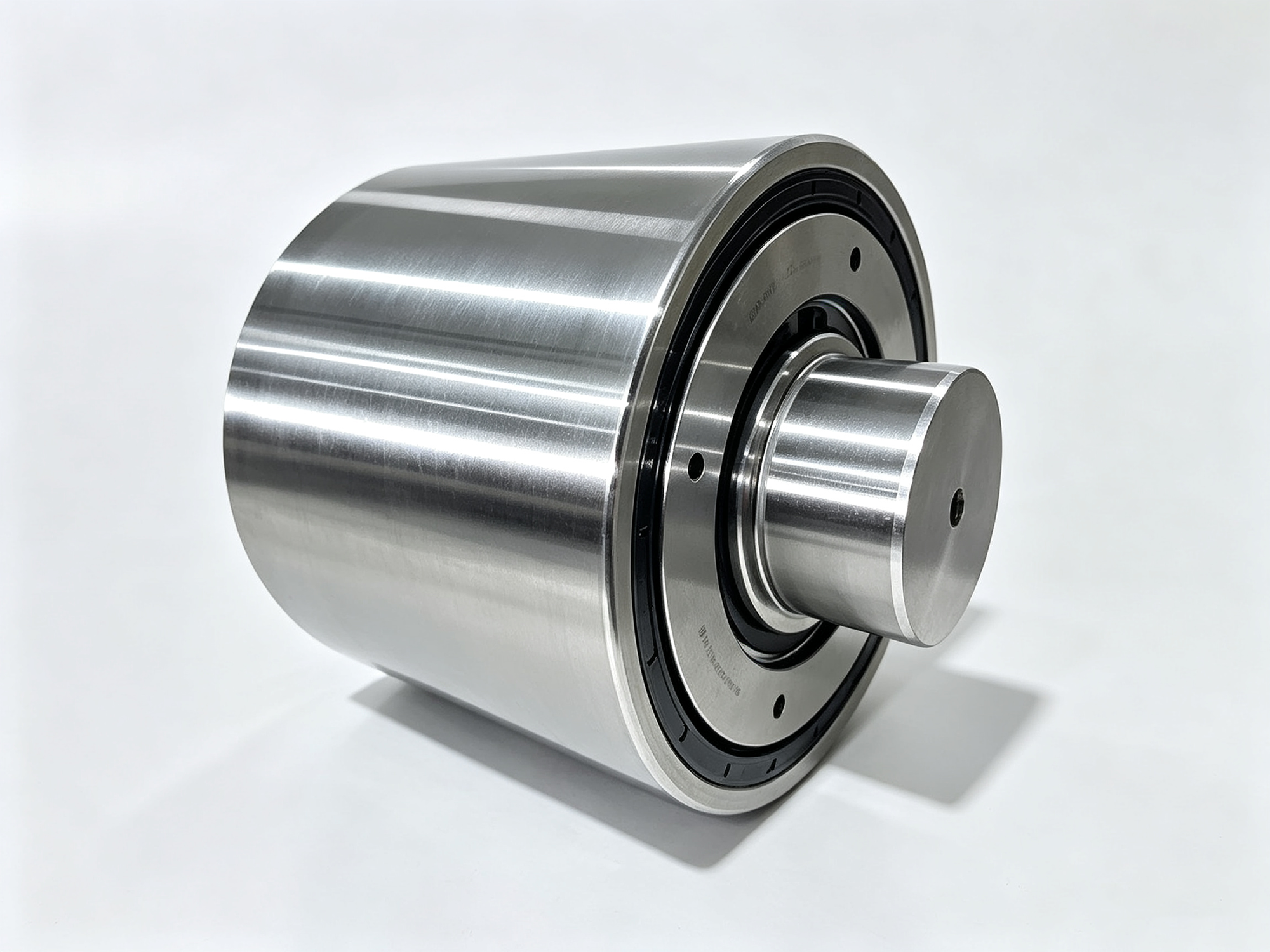

Heavy-Duty back-up rolls

1. Product Overview

In the precision leveling process, the back-up roll serves as the structural backbone of the roll stack, providing essential support to the intermediate or Work Rolls. Its primary function is to counteract the immense separating forces generated during operation, effectively preventing roll bending deflection and preserving the integrity of the roll gap geometry. To achieve optimal flatness results, our back-up rolls are engineered for exceptional stiffness and are precision-ground to maintain perfect linear contact with the supported rolls, ensuring uniform load distribution across the entire strip width.

2. Technical Specifications & Capabilities

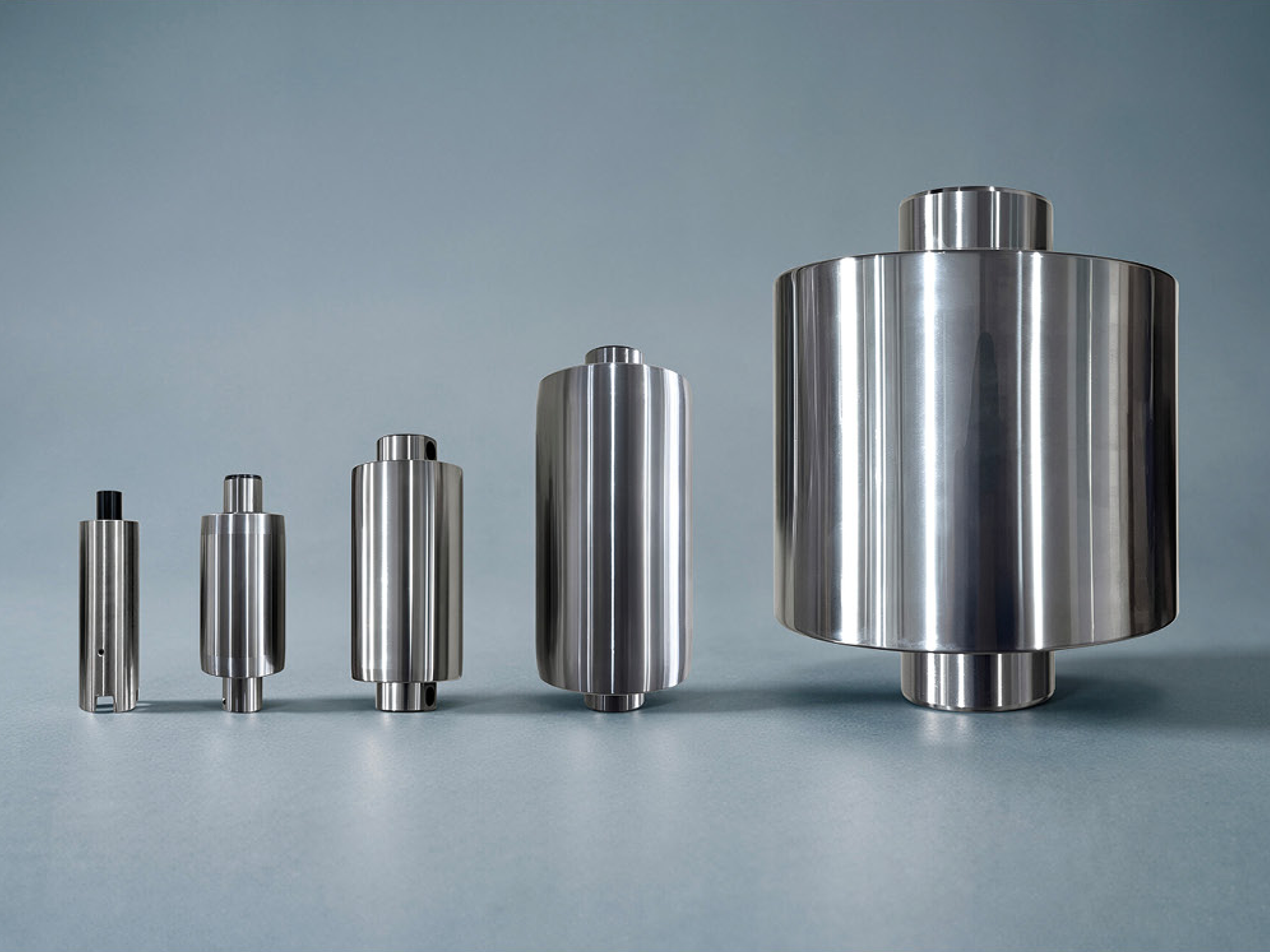

We have developed a comprehensive series of back-up rolls, covering a dimensional range from φ24.5 mm to φ260 mm. This extensive portfolio allows us to cater to a wide variety of leveling and straightening applications. Each roll is manufactured under stringent quality controls to meet the rigorous demands of modern Metal Processing Lines.

3. Key Design Features

· High Structural Rigidity: Engineered to withstand extreme static and dynamic loads without deformation, ensuring consistent strip shape correction.

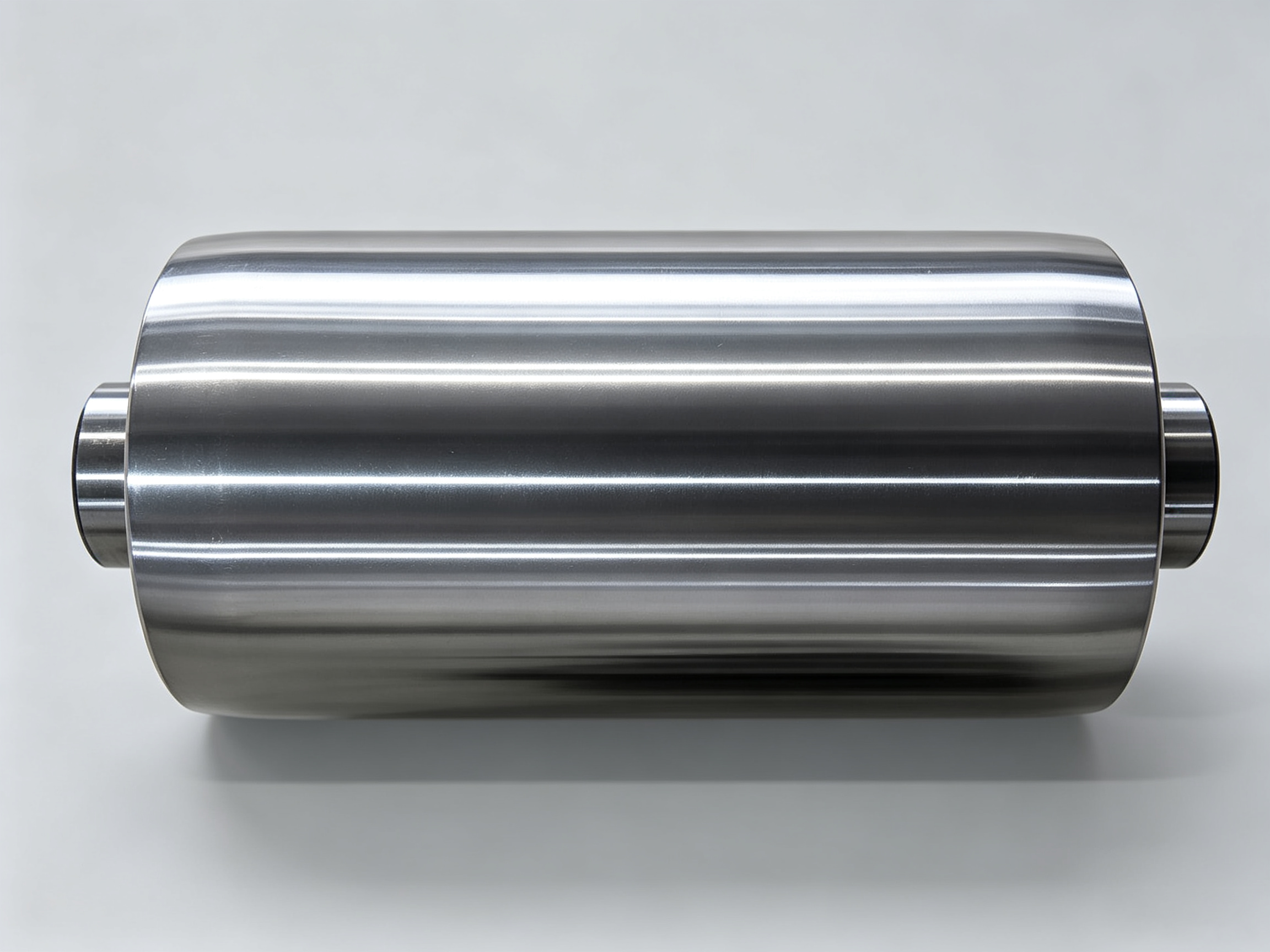

· Precision Geometry: Strict tolerances on cylindricity and diameter ensure true linear contact, which is critical for preventing strip defects and maximizing roll service life.

· Application-Specific Engineering: Our rolls are specifically designed to endure the harsh operating conditions characteristic of heavy industrial environments.

4. Application Versatility

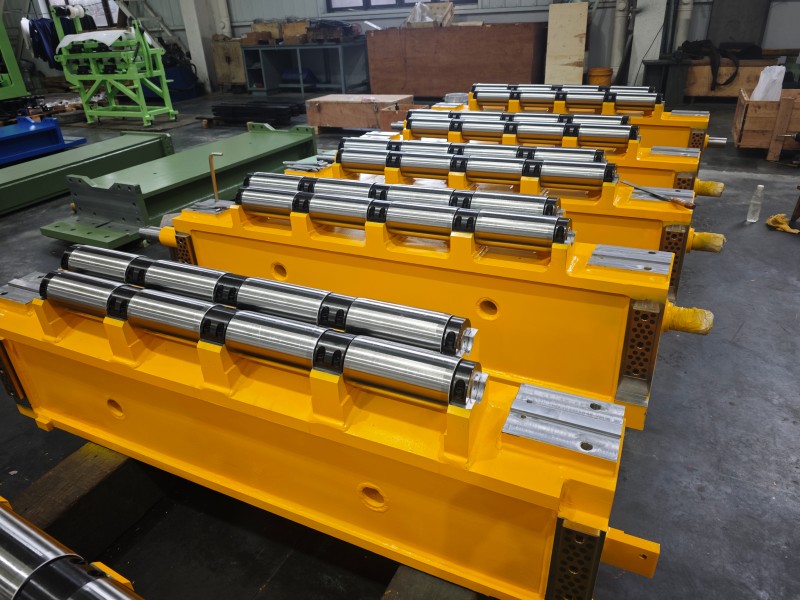

Our back-up rolls are optimally suited for deployment in demanding rolling mill and finishing line equipment, including:

· Tension Levelers: Providing stable support to work rolls under high strip tension.

· Scale breakers: Withstanding heavy impact loads during oxide scale removal.

· 23-Roll Levelers: Ensuring precise flatness correction in multi-roll configurations.

· Multi-roll Straighteners: Maintaining alignment and rigidity in complex roll stacks.

5. Performance Excellence

Designed for superior water resistance, high-speed operational stability, and outstanding heavy-load endurance, our back-up rolls deliver extended service intervals and reduced maintenance downtime. By minimizing deflection and maximizing support accuracy, they contribute directly to improved product quality and enhanced production efficiency.
