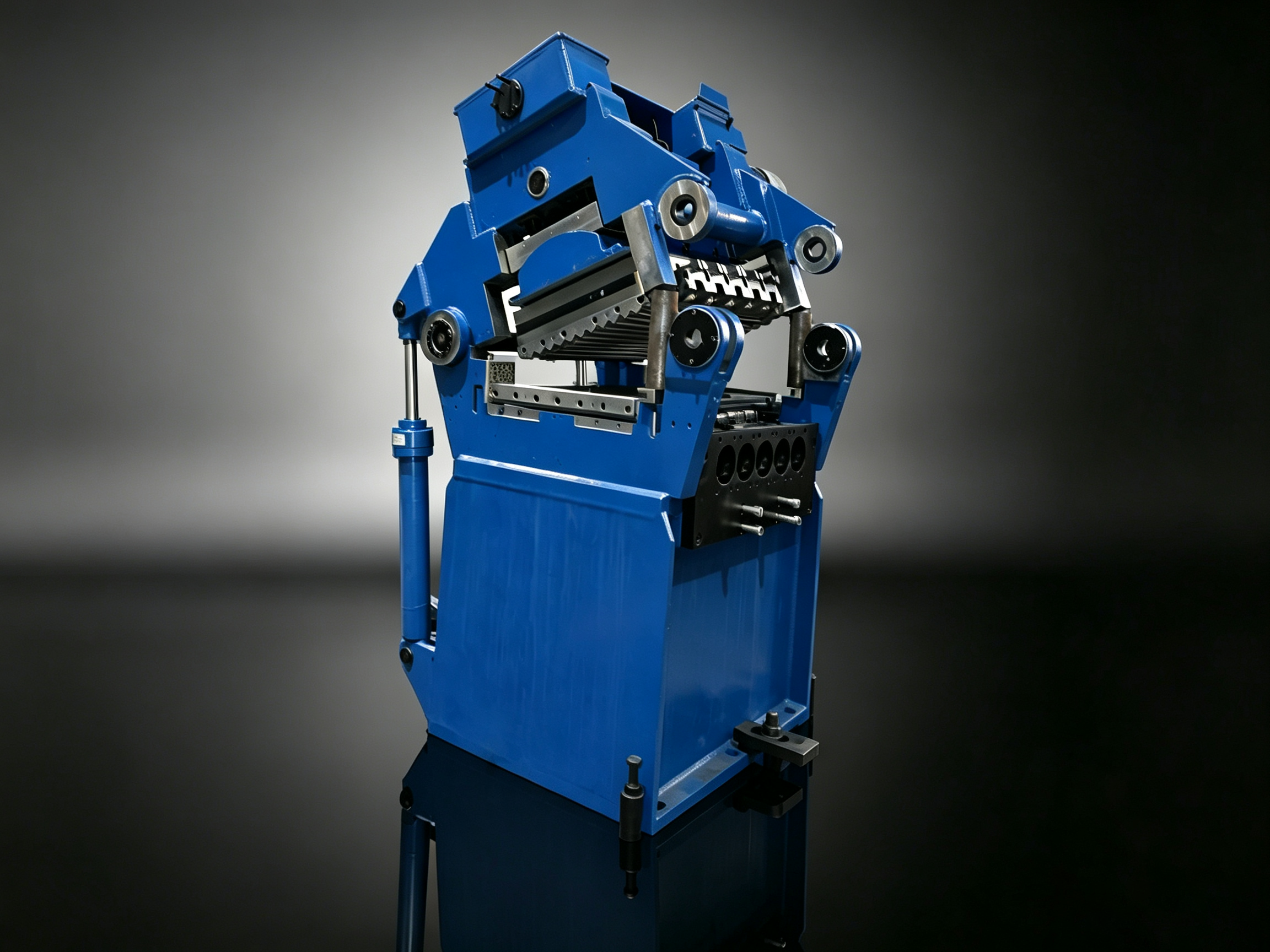

23-roll multi-roll levelers

Jiade 23-roller tension leveler straightens hard/semi-hard stainless steel, titanium, copper and nickel strips of 0.02–0.8mm thickness and 350–1250mm width at max 200m/min, adjusting lower roller crown to fix local flatness defects and deliver finished strip flatness of 3~5I, with customized sizes available per client’s site requirements.

Inquiry

E-mail：robin20076@hotmail.com

WhatsApp：+8618972225022

Detailed Description

The 23-roller series Tension Leveler is suitable for straightening hard or semi-hard precision stainless steel strip, titanium strip, and copper alloy strip. It can achieve precise straightening of the strip by adjusting the crown of the lower roller system to address local defects in the incoming strip shape.

Technical Specifications

Item	Parameter
Strip material	hard or semi-soft stainless steel strip and copper strip, Titanium strip, nickel strip
Strip thickness	0.02~0.8mm
Strip width	350~1250mm
Strip speed	≤200m/min
Incoming sheet shape	≤30～50I
Finished strip shape	3~5I

※ In addition to the straightening machines within the specifications listed, we also design and manufacture various specifications of straightening machines for our customers based on their on-site conditions.
